RV LIFT

Click or Tap Images above for Animation

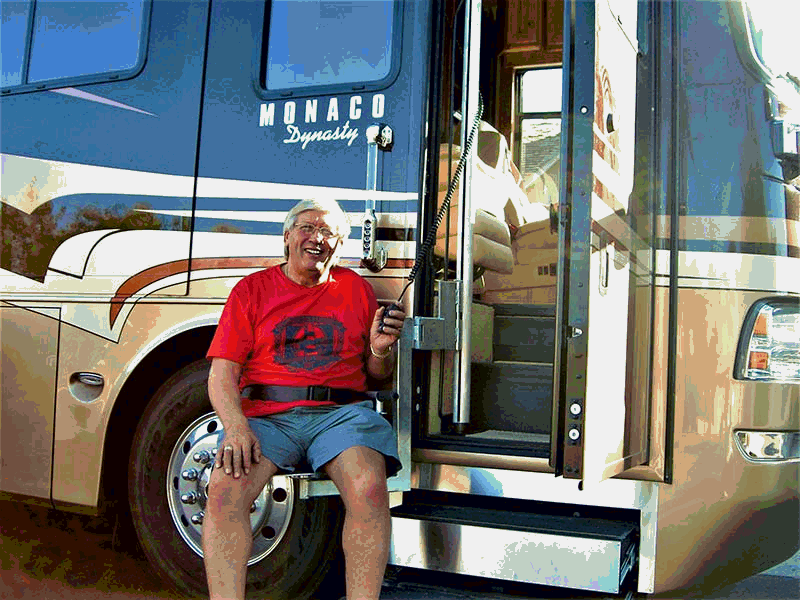

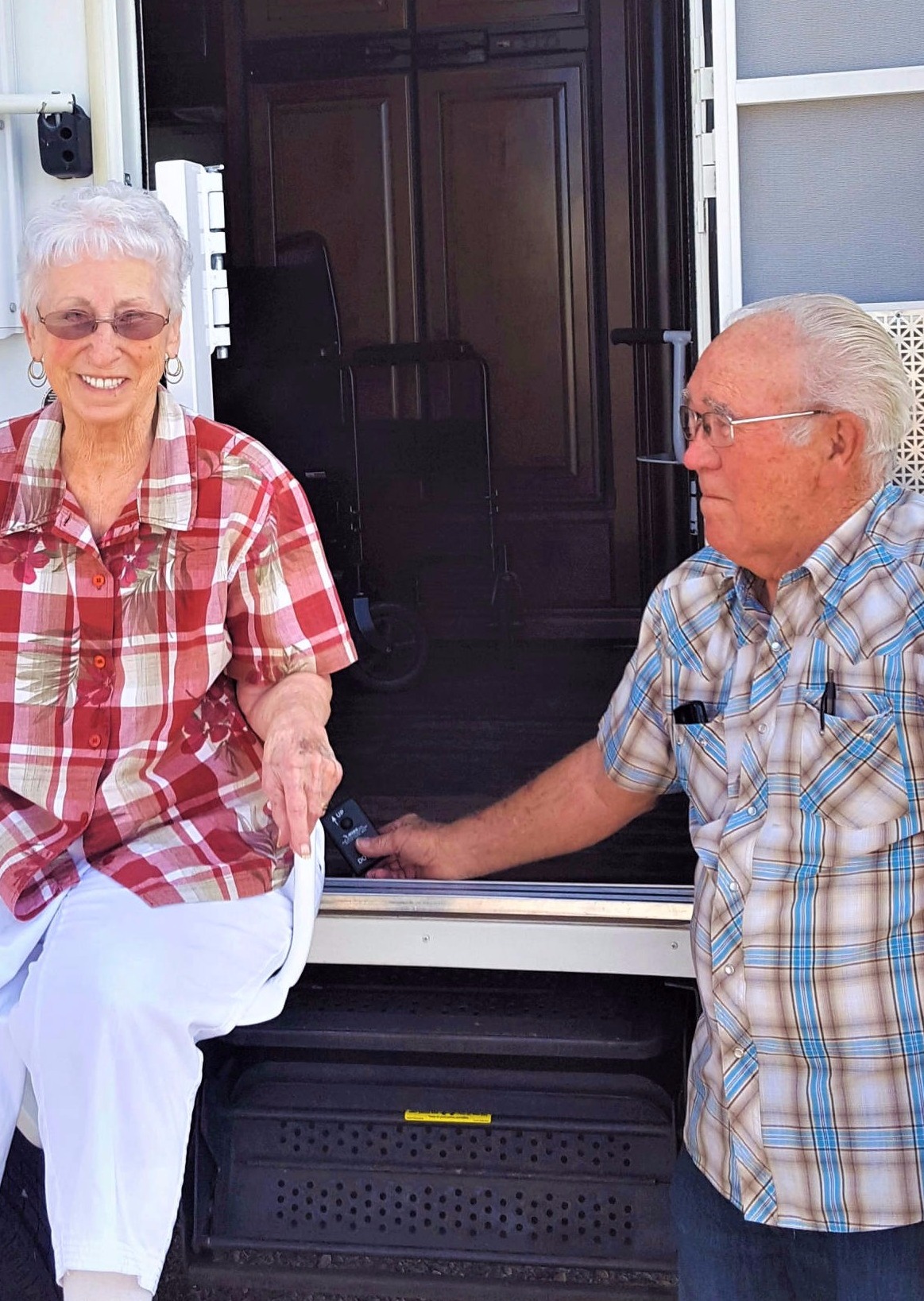

RV Lift by CoachLift® is an RV lift designed for durability and ease of use. It eliminates the need for widening or modifying the RV entry door. It can be installed on the exterior of the RV, adjacent to the entry door. It can also be installed inside the door, mounted in the step-well of the RV. The user sits in the lift chair, pushes the hand-held control button, then rises gently on the vertical lift tube. The RV lift chair swings through the door opening into the interior of the RV, bringing the user to the living floor of the vehicle. The double-hinged design of the swing arm allows the durable aluminum chair to turn to any angle for easy loading. Customization is a regular part of our business, because we know each individual’s situation is unique.

Specifications

  • All weight bearing parts are made of steel and powder coated.
  • Lift tube is aluminum.
  • Chair is aluminum.
  • Motor operates on 12 volt DC power.
  • Two gear speeds are available.
  • Lift uses an Acme thread screw mechanism.

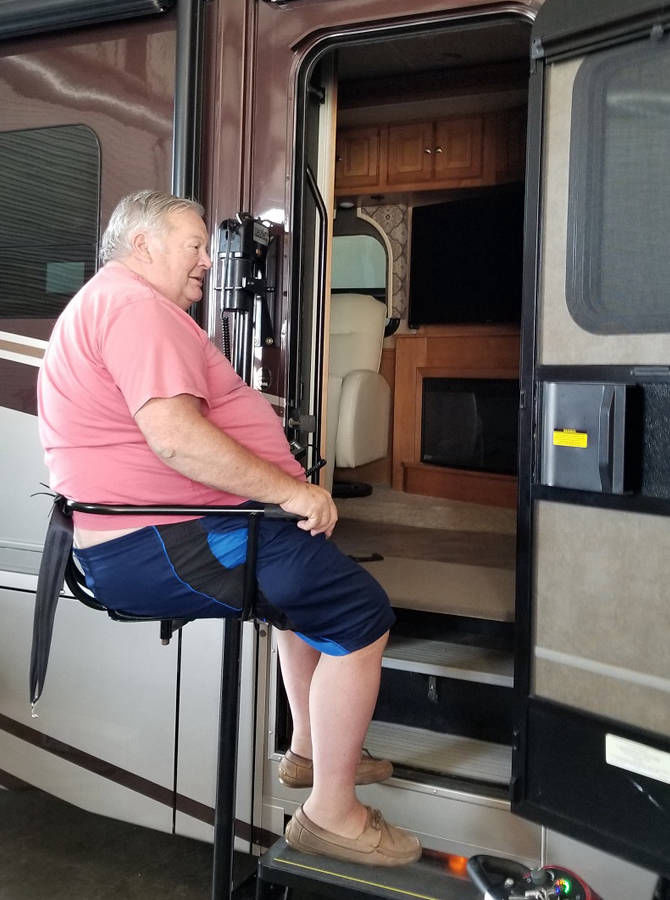

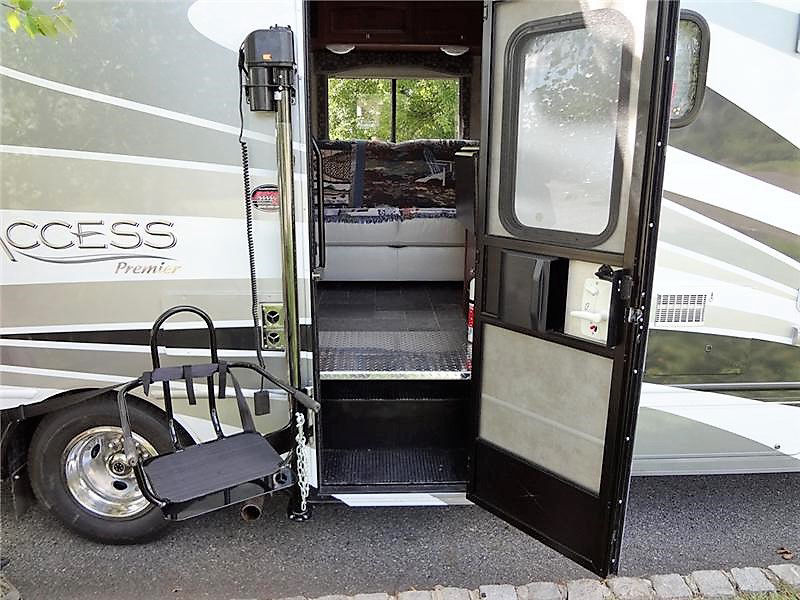

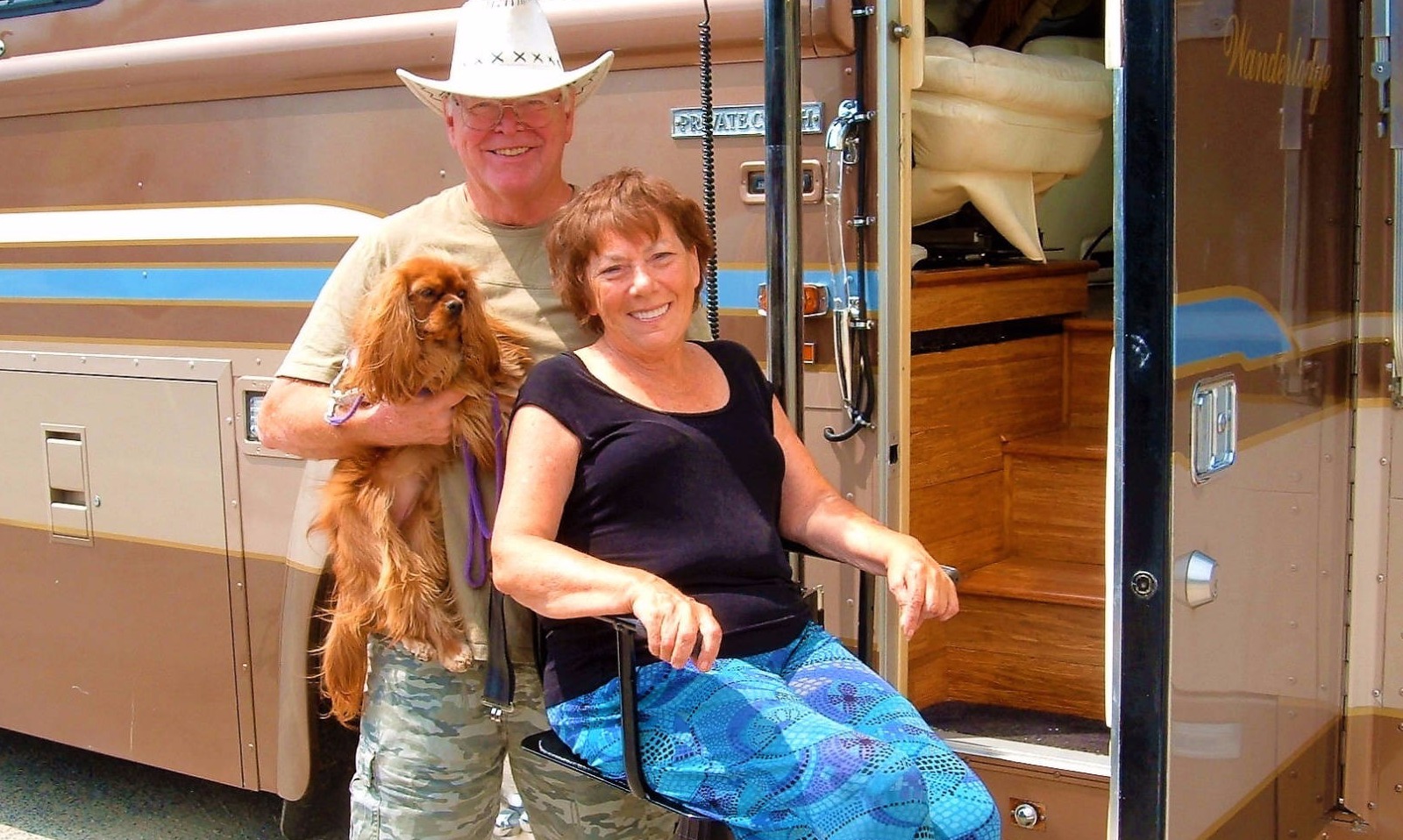

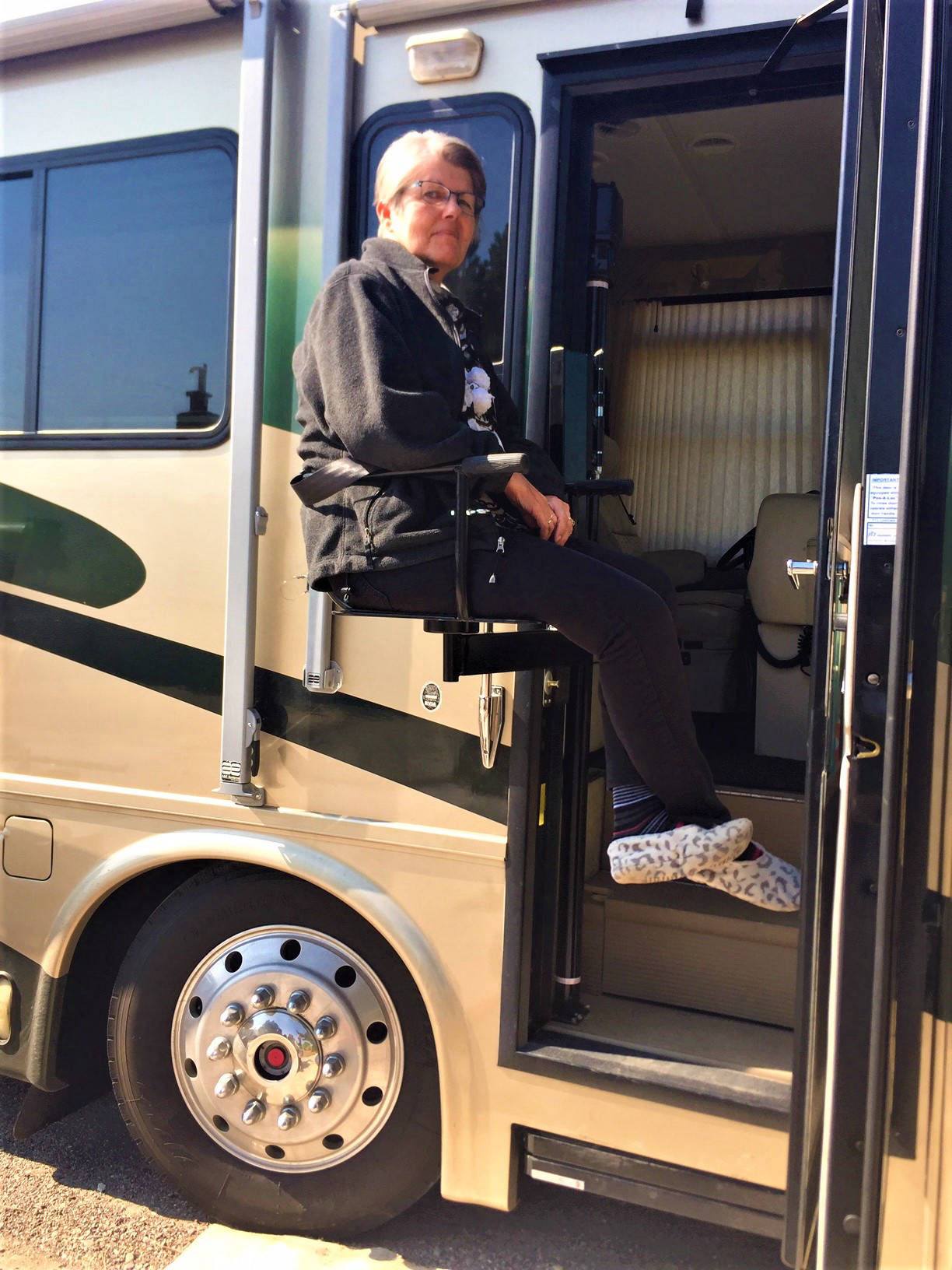

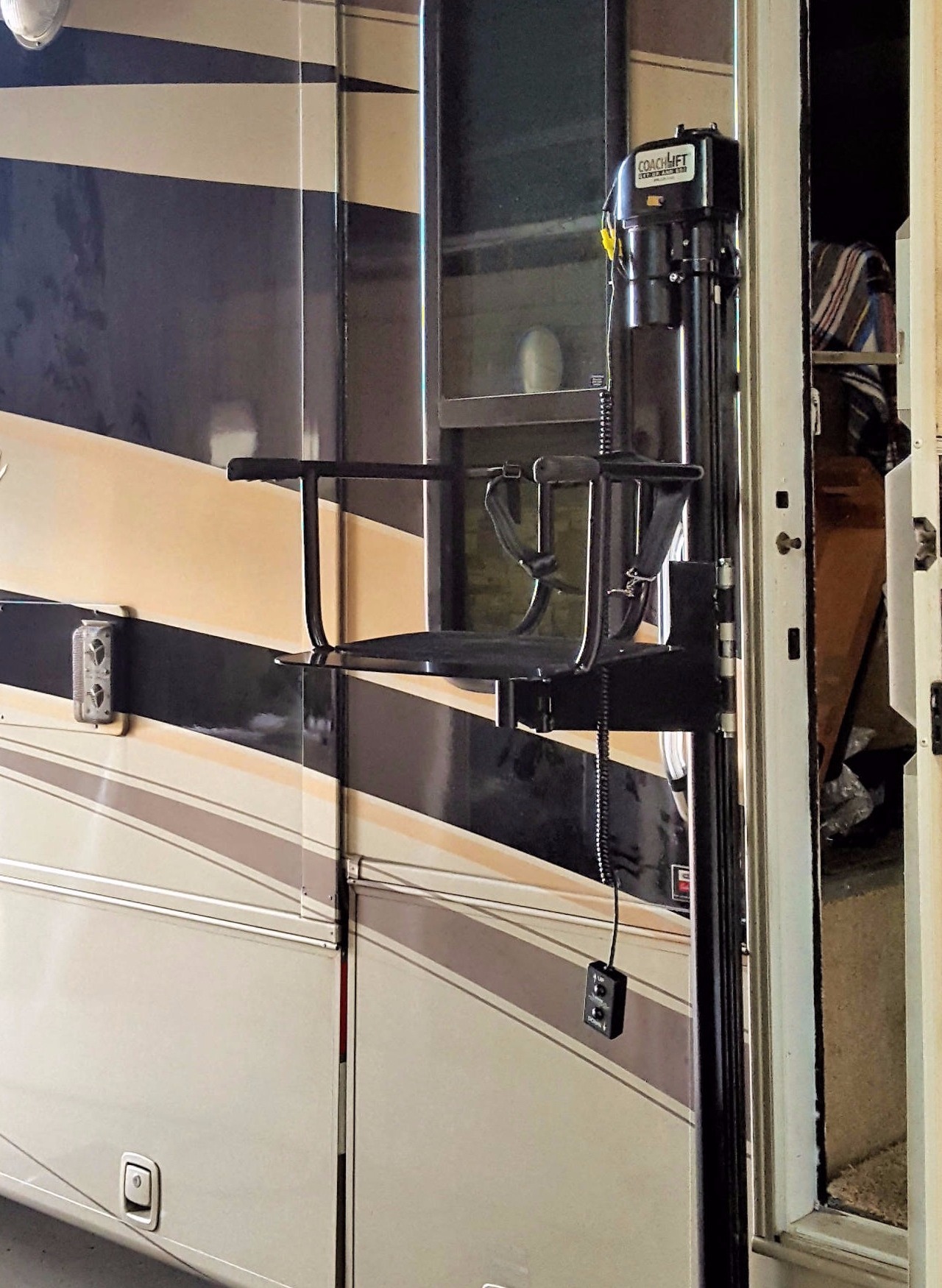

CoachLift Exterior Mount

2007 Newmar Kountry Star Class A Front Entry Motorhome Play Video
Winnebago Adventurer Class A Motorhome Play Video
2010 Keystone Springdale Travel Trailer Play Video
Thor Ace Class A Motorhome Play Video
Jayco Precept Class A Motorhome Play Video
Thor Coleman Class C Motorhome Play Video
Fleetwood Excursion Class A Diesel Pusher Motorhome Play Video
Thor Fourwinds Super C Motorhome Play Video
Monaco La Palma Class A Motorhome Play Video
2011 Tiffin Allegro Bus Play Video
2022 Entegra Vision 29M Play Video
Winnebago Journey Class A Front Entry Motorhome Play Video
Forest River FR3 Class A Motorhome Play Video
Tiffin Allegro Bus 40 IP Class A Front Entry Motorhome Play Video
Winnebago Brave Class A Motorhome Play Video
2022 Transcend 265BH Travel Trailer Play Video
2021 Thor Gemini 23TE Class B Motorhome Play Video
2017 Keystone Laredo 333BH 5th Wheel Play Video
Outdoors RV Mountain Series Travel Trailer Play Video
2003 Beaver Patriot Thunder Class A Motorhome Play Video
2022 Thor Hurricane 31C Class A RV Play Video
2007 Jayco Seneca Class C Motorhome Play Video
2017 Newmar Baystar Class A Motorhome Play Video
2022 Coachmen Sportscoach 339DS Class A Diesel Pusher Play Video
2013 Winnebago Vista 28’ Class A Mid Entry Motorhome Play Video
2015 Legacy SR 300 BH Class A Mid Entry Motorhome Play Video
2018 Thor Vegas Class A Motorhome Play Video
2023 Grand Design Imagine 2910 Play Video
2011 Itasca Sunstar Class A Motorhome Play Video

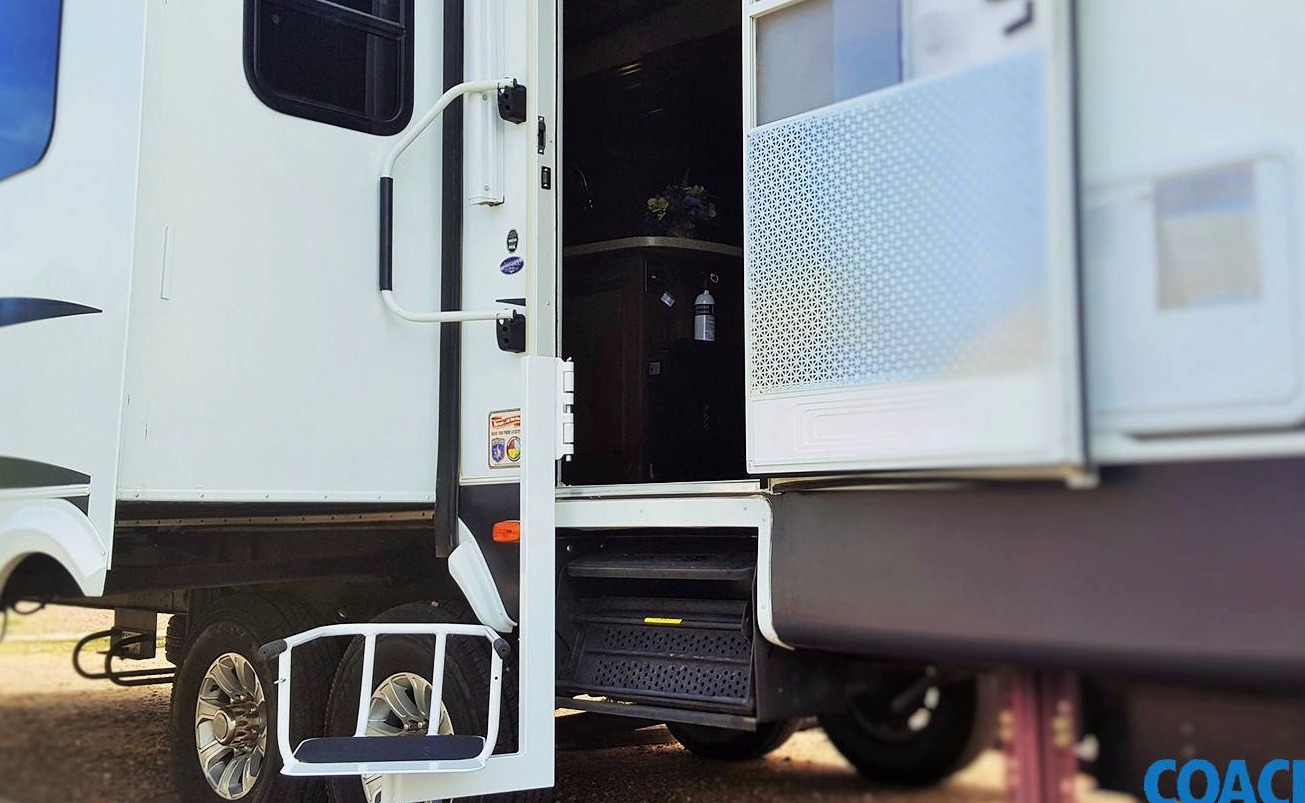

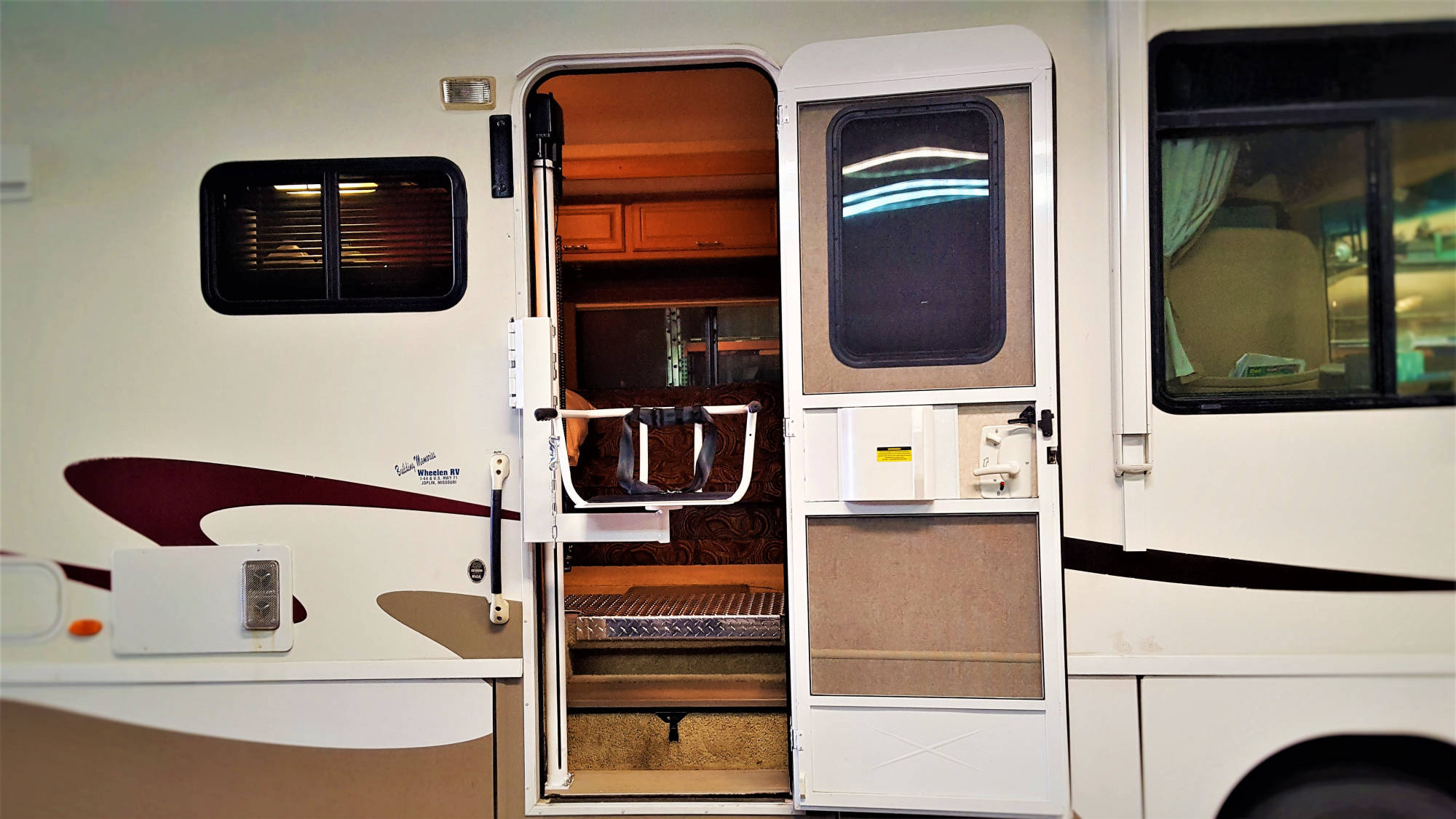

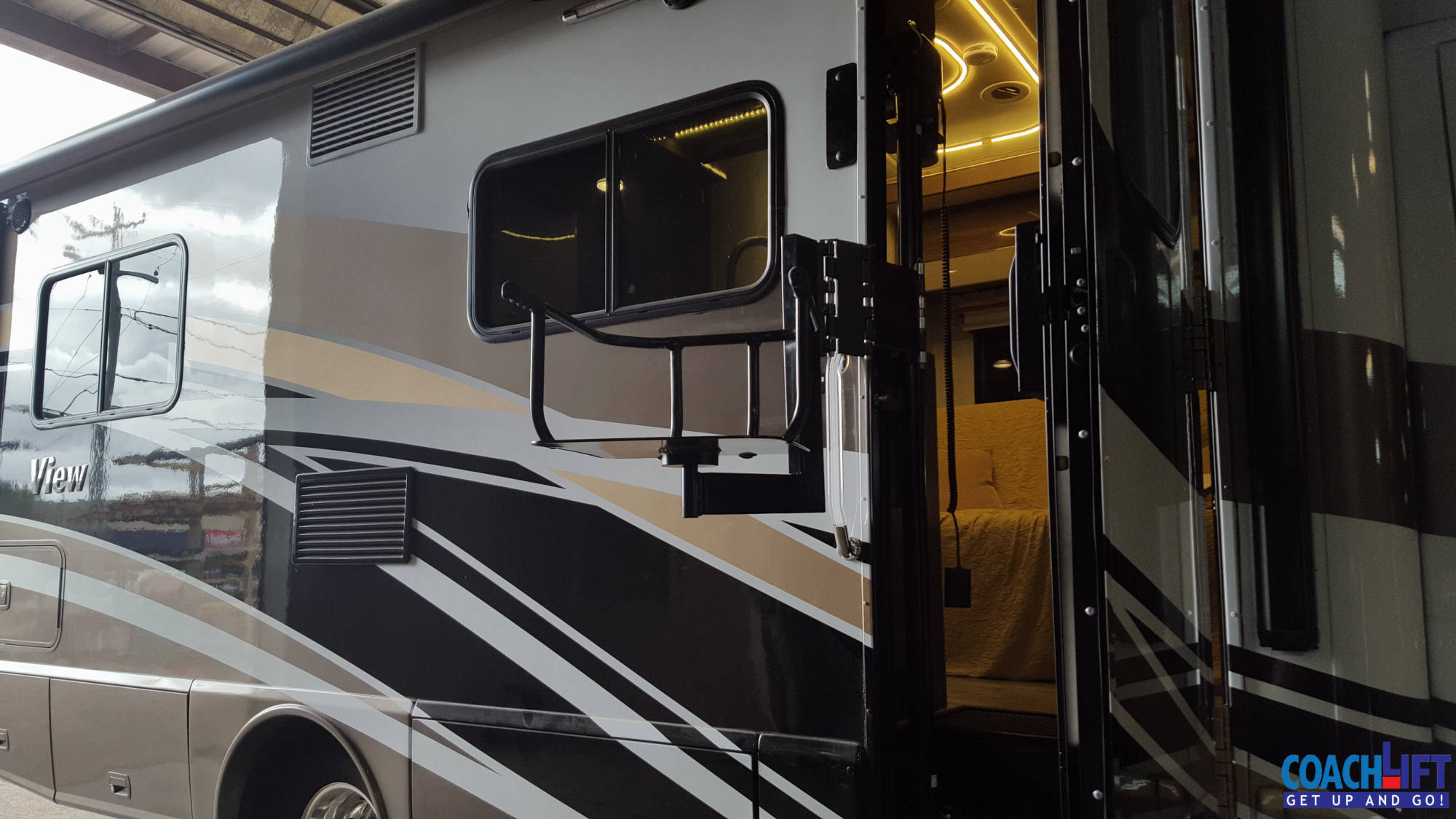

CoachLift Interior Mount

Winnebago Voyage Class A Motorhome Play Video
Itasca Sunova Class A Gas Motorhome Play Video
Coachmen Cross Country Class A Front Entry Motorhome Play Video

RV Handicapped Lift Installation


The RV lift is powered by the RV accessory battery and operates with a reversing twelve volt DC power-head (motor). It can be installed on almost any RV with minimal modification to the vehicle. The lift is supported at the bottom by a metal bracket that is firmly welded to a solid member of the RV structure. The top of the lift tube is mounted by a bracket through the exterior wall of the RV, using a metal backing plate on the inside wall. The swing arm and chair assembly extend over two feet into the interior of the vehicle. If the RV does not have a floor extension that covers the step well area, the installer must fabricate a step well cover so that the lift user can not step backwards into the step well area while transferring from the lift chair onto the RV floor. When traveling, the chair and swing arm assembly are easily removed, and stowed in a storage compartment or inside of the vehicle.

RV Lift Photo Gallery

Contact Info

J&D Mobility, LLC

E-Mail: contact@coachlift.com

Phone: 480-648-0545
              877-595-8204

About Us

CoachLift® has a complete line of mobility lifts that allow a simplified mode of entrance to any vehicle or aircraft. RV Lifts from CoachLift® allow the utmost in mobility and comfort while utilizing a simple swing mechanism for a seamless entrance. The handicapped chair lift rises with the simple push of a button and is controlled by the user. In addition to RV lifts, we also provide disabled stair lifts for the home, heavy duty equipment vehicles, boats, aircraft and more. Each mobility lift can be fully customized to suit individual needs. The CoachLift® is 100% manufactured in the U.S.A.
